A stray ball went through one of the window panes in the top section. The glass is gone, the frame around it is cracked, and the steel beside the opening is pushed in, so the whole section is in question rather than one pane.
A sectional garage door is built from four or five horizontal sections joined by hinges, each riding on its own rollers in the tracks. Panel replacement takes advantage of that design: when one section is creased, rusted or cracked, it can be unhinged and swapped for a new section of the same make, model and size while the rest of the door stays where it is. The technician identifies the door, confirms a matching section is available, holds the door secure in its tracks, exchanges the section with any bent hinges or rollers, and then re-checks alignment, balance and the opener before handing the door back.
Sound familiar?Brampton
Garage Door Panel Replacement · Brampton
Scene 1
Bottom, middle and top sections are different parts with different jobs, and the position sets the shape of the repair. A bottom section carries the lift cables through its bottom brackets, so replacing it means unloading the springs first. A top section carries the opener arm bracket and the top roller fixtures, so its replacement includes resetting how the opener pulls. An intermediate section carries only hinges and rollers and is the simplest exchange. The technician also checks whether the damaged section is a special one, such as a glazed section or one with a factory strut, because it is ordered as that exact position and type.
Scene 2

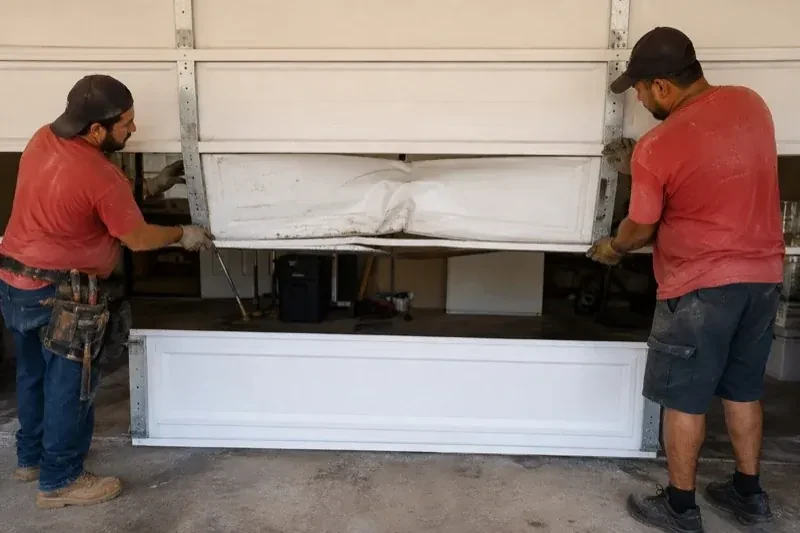

The new section is lifted into the gap, its rollers guided into the tracks and its joint mated to the section below so the two profiles nest. Hinges go on according to the number stamped on them: each position in the door uses a different hinge offset, which places the roller progressively further from the door face so the upper sections follow the curve of the track. New self-tapping screws are driven into the stiles at the factory hole positions, a strut is bolted across if the section calls for one, and the technician confirms the section sits flat and the joint above closes tight.
Scene 3
A fresh factory finish beside weathered sections shows for a while, and you should expect that rather than be surprised by it. Sun and weather will change the new colour somewhat over a season or two, but weathering does not reliably bring it into line with older sections, and a visible mismatch can persist even with the same factory colour designation. If the contrast is more than you would like, the door can be repainted as a whole with an exterior paint suited to the finish, which also refreshes the older sections. Keep the colour name and code from the order; it makes a later touch-up or a second section far simpler to match.
What shapes the quoteArmbro Heights Garage Door Pros
FeesSame any hour
It will match the factory colour your door was made in, which is not quite the colour your door is today, because paint fades in sun and weather. A fresh section can look noticeably brighter than its neighbours, and that difference may not go away with time. If the contrast bothers you, the whole door can be painted with an exterior product suited to the finish. Ask to see the current colour chip against your door first.
Enough to bring the new section in, lay it flat, and work at both tracks and the spring shaft. Moving vehicles out of the garage and clearing a metre or two along the walls where the tracks run makes the job smoother, as does clear access to the opener and the ceiling around the spring. Sections are handled by two people and are wider than the door opening, so a clear path from the driveway helps.
Sometimes. A shallow dent in the middle of a steel skin, away from joints and hinge points, can often be eased out or filled, sanded and painted. Damage that creases the metal, reaches a joint or an end stile, bends a hinge point, or kinks a strut affects how the section carries load as the door moves, and a new section is the sound repair there. The technician tells you which category your dent falls into.
